ProductsTerracotta PanelNatural Flat Finish

Terracotta Cladding

Item_No F4518991

Material Natural Clay, Eco Green Materials,

Size 450*600*18mm

Usage Wall Facade Cladding Decoration, Terracotta Facade

Terracotta Cladding introduction

Product Specification
Item NO. F4518991 Certification CE,ASTM,GB
Size 450*600*18mm MOQ 1500 SQM
Color Grey Lead Time 35 days
Surface Finish Natural Flat Packing Wooden Crate
Material Natural Clay Port Xiamen Port
Weight 31 KGS/SQM Payment Term TT/LC

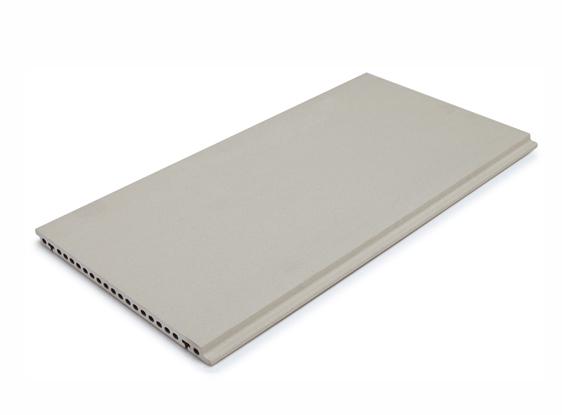

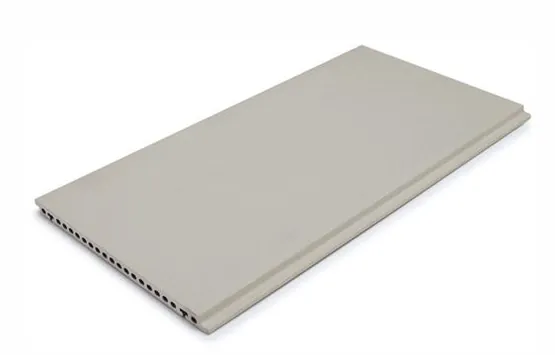

LOPO Terracotta Facade Panel with flat surface is the most classic panel product of LOPO China. The texture of this series is fine and smooth due to the great clay material of south China. Under high-temperature (above 1200℃) firing, the clay material are turning to be a very natural texture.

More LOPO Terracotta Panel with flat finish:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm


Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions/Surface Quality
Length ±1%/max.±1mm ±2% ISO10545-2
Width ±1%/max.±1.5mm ±2%
Thickness ±10%/max.±1.0mm ±10%
Straightness of Sides ±0.5%/max.(L:±2mm;W:±0.5mm) ±1%
Rectangularity ±0.5%/max.±1mm ±1%
Surface Flatness
Centre Curvature ±1% ±1%
Edge Curvature ±1% ±1%
Warpage ±1% ±1.5%
Surface Quality Fulfilled A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties
Water Absorption 3-7.5% 6-10% ISO10545-3
Breaking Strength Average>2700 N ≥750 N ISO10545-4
Modulus of Rupture Average>15 MPa Average≥9 MPa ISO10545-4
Abraision Resistance <460 mm³ Max. 1062 mm³ ISO10545-6
Resistance to Thermal Shock Fulfilled Pass according to EN ISO 10545-1 ISO10545-9
Freeze-thaw Resistance Fulfilled Pass according to EN ISO 10545-1 ISO10545-12
Moisture Expansion <0.02% Declared value ISO10545-10
Reaction to Fire Class A1 Class A1 or A1FL
Chemical Properties
Chemical Resistance
Low Concentrations of Acids and Alkalis ULA Declared value ISO10545-13

LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
