LOPO China Terracotta Facade Panel Manufacturer

ProductsTerracotta PanelGrainy Texture

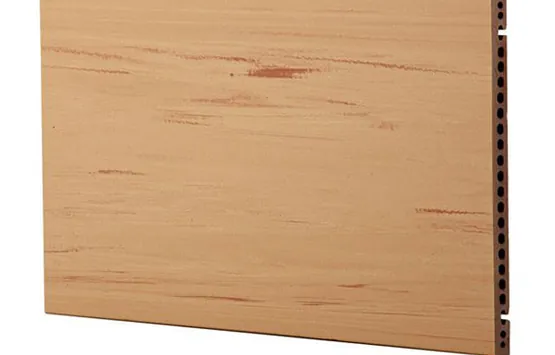

Terracotta Facade FW3018217.

Terracotta Facade FW3018217.

Item No.: FW3018217.

Material: Natural Clay, Eco Green Materials

Size: 300*1200*18mm

Usage: Wall Facade Cladding Decoration

Terracotta Facade FW3018217. introduction

Product Specification
Item NO.FW3018217.CertificationCE,ASTM,GB
Size300*600*18mmMOQ1500 SQM
ColorYellowLead Time35 days
Surface FinishGrainyPackingWooden Crate
MaterialNatural ClayPortXiamen Port
Weight31 KGS/SQMPayment TermTT/LC

LOPO Terracotta Facade Panel with grainy texture is presenting a “timber” appearance. There are various colors and wood textures available for different architecture styles.

More LOPO Terracotta Panel with grainy texture:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm



Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions/Surface Quality


Length±1%/max.±1mm±2%ISO10545-2
Width±1%/max.±1.5mm±2%
Thickness±10%/max.±1.0mm±10%
Straightness of Sides±0.5%/max.(L:±2mm;W:±0.5mm)±1%
Rectangularity±0.5%/max.±1mm±1%
Surface Flatness

Centre Curvature ±1%±1%
Edge Curvature ±1%±1%
Warpage ±1%±1.5%
Surface QualityFulfilledA minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties


Water Absorption3-7.5%6-10%ISO10545-3
Breaking StrengthAverage>2700 N≥750 NISO10545-4
Modulus of RuptureAverage>15 MPaAverage≥9 MPaISO10545-4
Abraision Resistance<460 mm³Max. 1062 mm³ISO10545-6
Resistance to Thermal ShockFulfilledPass according to EN ISO 10545-1ISO10545-9
Freeze-thaw ResistanceFulfilledPass according to EN ISO 10545-1ISO10545-12
Moisture Expansion<0.02%Declared valueISO10545-10
Reaction to FireClass A1Class A1 or A1FL
Chemical Properties


Chemical Resistance


Low Concentrations of Acids and Alkalis ULADeclared valueISO10545-13


LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
