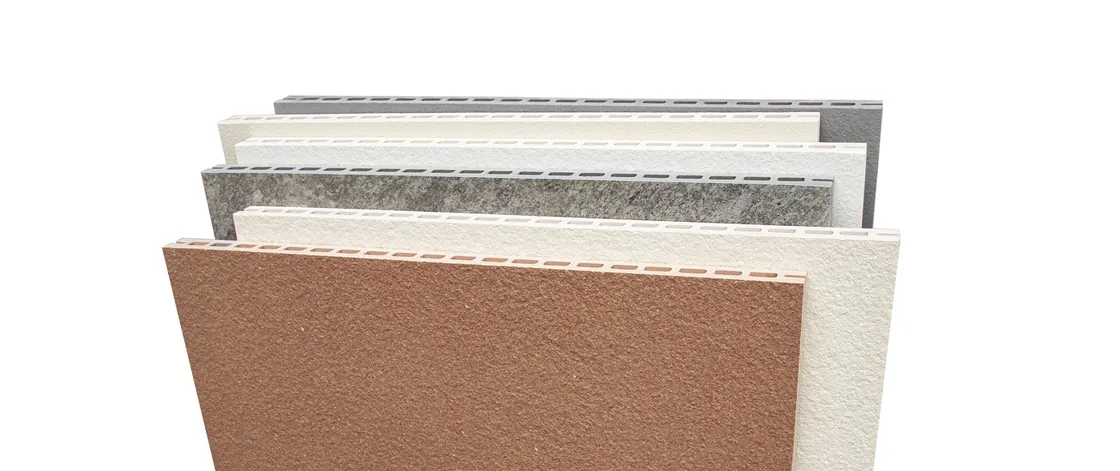

LOPO Extruded Porcelain Panels
LOPO Extruded Porcelain Panels are specifically engineered for high-performance building facade systems. They are manufactured from refined raw materials, formed through high-pressure vacuum extrusion, and fired at temperatures exceeding 1200°C (fully vitrified) via a multi-stage precision sintering process. With water absorption strictly maintained below 0.5%, these panels meet ISO 13006 (Group AIa) requirements for breaking strength, freeze-thaw resistance, and stain resistance—offering a durable, protective, and aesthetically refined solution for modern architectural facades. This series represents the culmination of decades of technical expertise in architectural terracotta and our continuous evolution into high-performance porcelain solutions.
Technical Data – LOPO Extruded Porcelain Panels
| Physical Property | Standard Requirement | LOPO Value | ISO Equivalent |
|---|---|---|---|
| Water Absorption | ≤0.5% | 0.3% | ISO 10545-3 / GB/T 3810.3 |
| Breaking Strength | — | 7872 N | ISO 10545-4 / GB/T 3810.4 |
| Freeze-thaw Resistance | 100 cycles without visible effects | Pass | ISO 10545-12 / GB/T 3810.12 |
| Stain Resistance | Minimum Class 3 | Class 5 | ISO 10545-14 / GB/T 3810.14 |
| Chemical Resistance | Minimum UB | UA / GLA | ISO 10545-13 / GB/T 3810.13 |
| Coefficient of Linear Thermal Expansion | — | 5.1×10⁻⁶/℃ | ISO 10545-8 / GB/T 3810.8 |
Note: The data above is based on test results for a light grey LOPO Extruded Porcelain Panel (Dimensions: 600×300×19 mm). Performance may vary slightly for other sizes, colors, or surface finishes. Please contact our technical team for details or to request the full test report.
Why Choose LOPO Extruded Porcelain Panels
1. High Weatherability
Extremely low water absorption plus a fully vitrified body provides excellent weatherability, extending the life of your facade.
2. Low Maintenance & Anti-Pollution
The dense surface resists salt spray and acid rain. It stays cleaner longer and is easy to clean, reducing long-term maintenance costs.
3. Structural Stability
High breaking strength offers a solid safety margin for facade systems under high wind loads at altitude.
4. Thermal Efficiency & Acoustic Comfort
The hollow core works with a ventilated facade system to lower heat transfer and save energy. It also helps improve indoor acoustics.

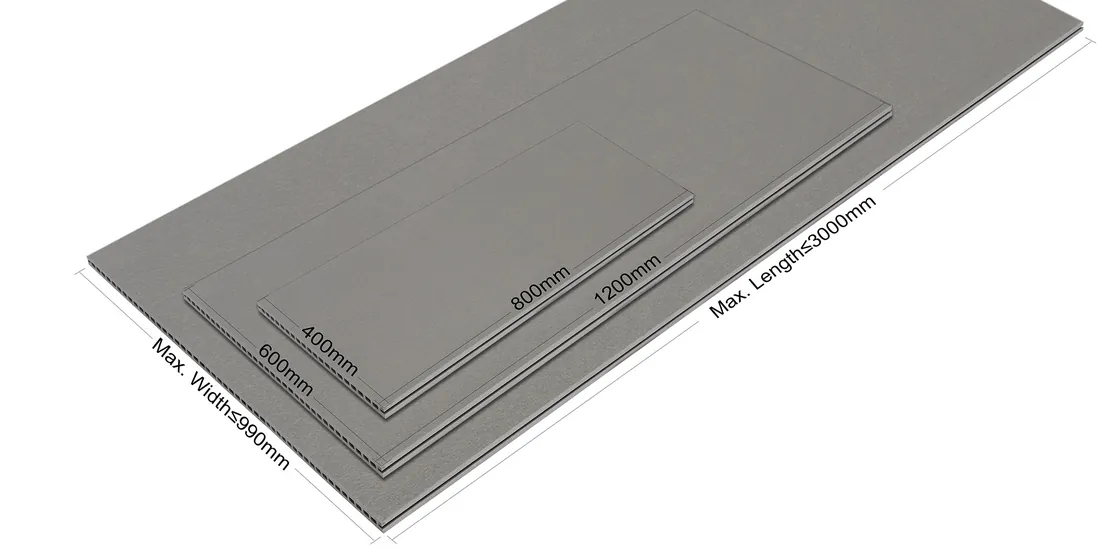

Dimensions & Sizes
LOPO extruded porcelain panels are available in standard sizes, with large-format custom options.
| Category | Dimensions: L × W (mm) | Thickness (mm) |
|---|---|---|
| Standard | 800×400, 1200×600, 1500×600 | 20 |
| Custom Max | Max. Length ≤ 3000, Max. Width ≤ 990 | Available upon request |
Note: Standard thickness is 20 mm. Other thicknesses (e.g., 18–25 mm) are available on request for specific projects. Please contact us to discuss your design.
Surface Finishes: Textures & Colors
LOPO panels offer a wide range of choices — from natural stone and metal looks to custom colors. Our advanced extrusion die technology creates rich three-dimensional textures, giving architects broad design freedom.

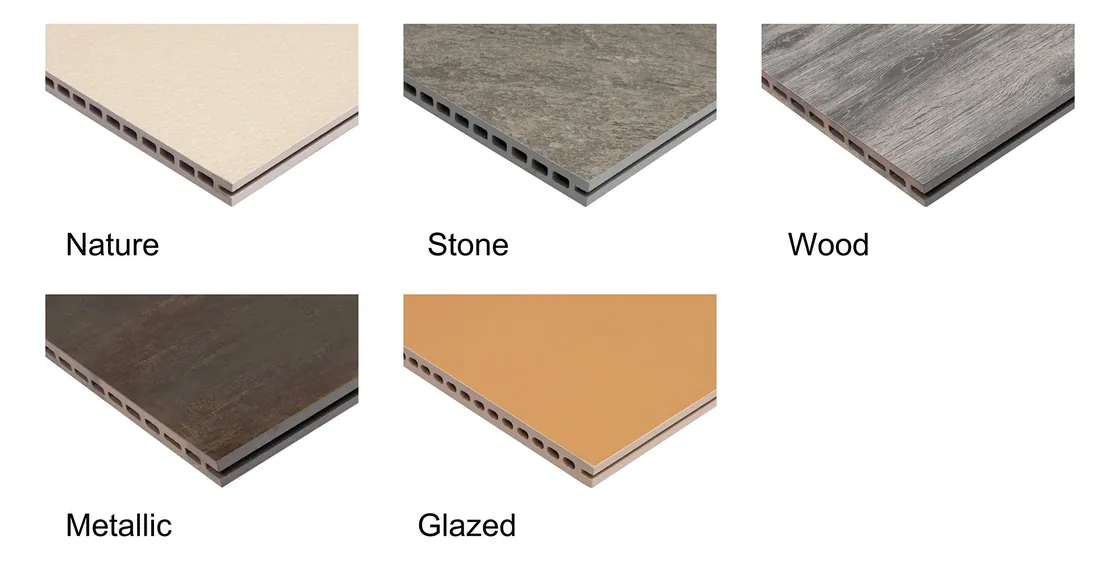

1. Visual Finishes
| Visual Finishes | Aesthetics | Customization |
|---|---|---|
| Nature | Captures the raw, uniform essence of vitrified material. | LOPO standard color range |
| Stone | Fusing the textures of granite and marble with high-precision extrusion. | Deep texture customization available |
| Wood | The natural warmth of wood grain meets the industrial durability of ceramic. | Custom wood tone colors available |
| Metallic | Deep, oxidized aesthetics and subtle mineral sheens that respond dynamically to light. | Custom metallic color matching |
| Glazed | High-saturation solid colors for distinct and personalized architectural branding. | RAL color matching available |

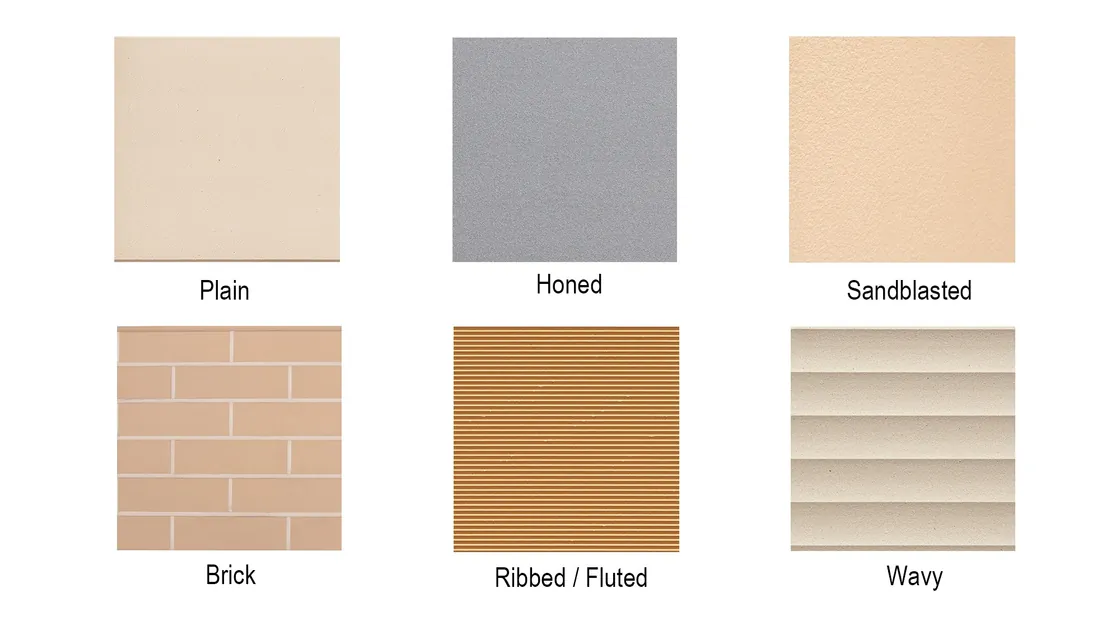

2. Surface Textures
Plain / Honed / Sandblasted / Brick / Ribbed（Fluted ）/ Wavy

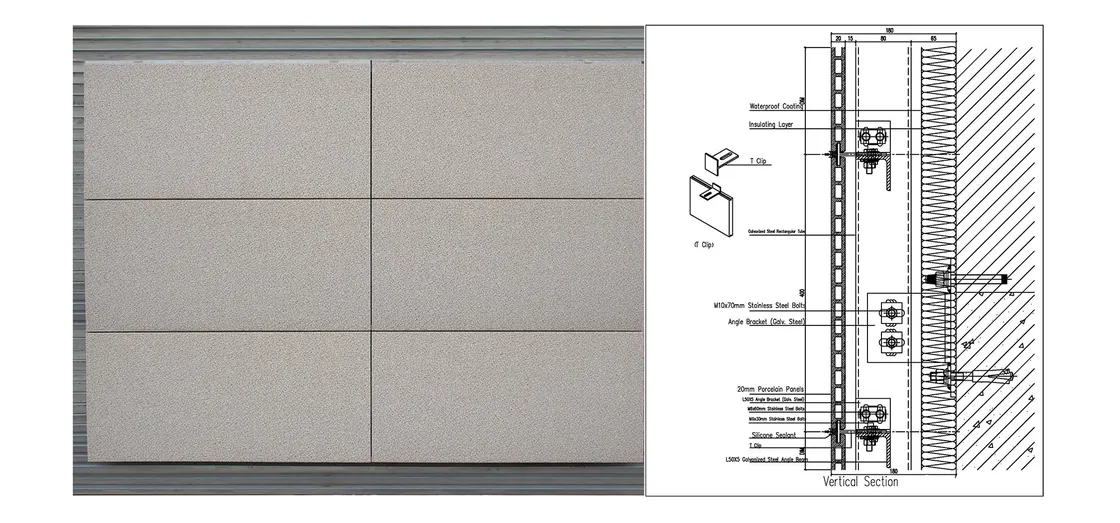

LOPO Extruded Porcelain Facade System
LOPO extruded porcelain panels have a grooved edge profile integrally formed along the top and bottom edges. These grooves work with a mechanical anchoring system using fixing clips and support frames. For optimal performance, on-site installation should be coordinated with the building's insulation and waterproofing layers to form a complete ventilated façade cladding system.
The system supports both horizontal and vertical installation, providing architectural flexibility and facilitating efficient construction.
Our technical team can adapt the system based on specific structural conditions or budget constraints to balance safety with cost-effectiveness. We also provide custom fabrication services, including irregular cuts and mitered corners, to streamline corner detailing and speed up site execution.
For project-specific construction details or CAD drawings of the LOPO porcelain system, please contact our technical support team.
Application Scenarios
1.Extreme Cold & High-Altitude Regions:
Withstands 100 freeze-thaw cycles without cracking, effectively mitigating the risk of substrate damage caused by ice expansion.
2. Coastal & High-Pollution Environments:
Resistant to salt spray, acid rain, and UV exposure; colors remain vibrant without fading, reducing long-term maintenance overhead.
3. High-Rise Buildings and Energy-Efficient Retrofits
Meets critical requirements for wind load resistance and A1 fire rating. The high breaking strength and hollow-core structure enhance the building's overall thermal performance when used in ventilated facade systems.
Technical Inquiries: For samples, custom quotes, and project technical support, contact the LOPO technical team.
