Facade Tiles and Baguettes in Natural Terracotta Texturing HKB Archives Center

Corporate News

Project: Hankou Bank Archives Center

Architect: Central South Architectural Design Institute Co., Ltd (CSADI)

Chief Designer: Gao Jie

Location: Hejiahunan Road, Xingyuanchang Village, Daqiao New District, Jiangxia District, Wuhan

Terracotta Facade Tiles:creamy white, natural surface, Height:450mm*Length:(200-1200)mm*Thickness 30mm, total QTY 12000 SQM

Rectangular Terracotta Baguettes:creamy white, natural surface, Height:130mm*Thickness 50mm, total QTY 1450 M

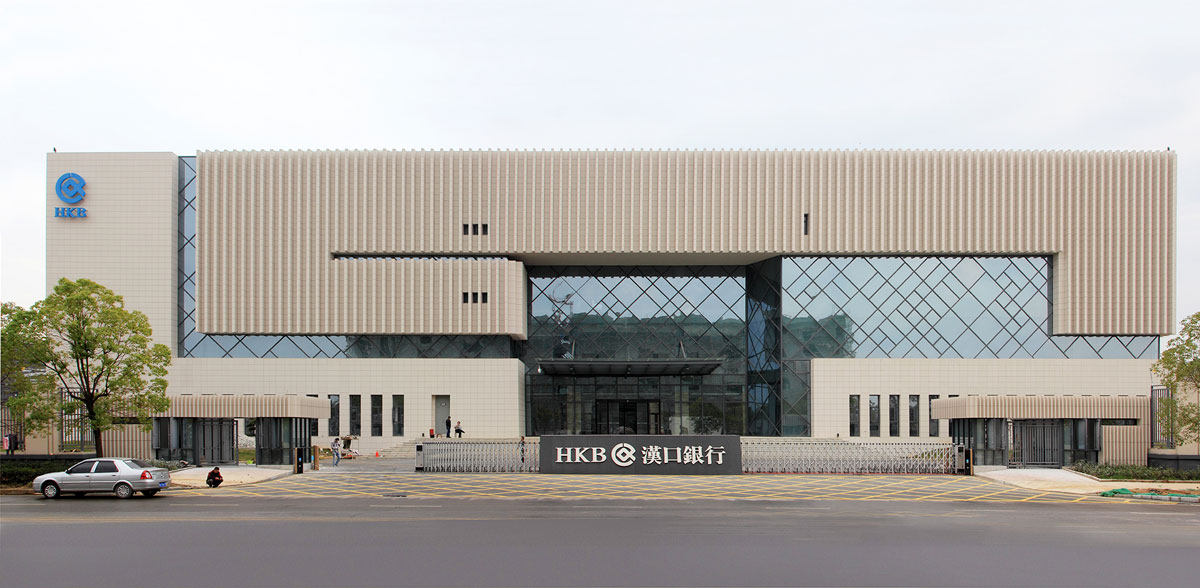

Facade tile cladding of HKB Archives Center.jpg

Hankou Bank is a modern commercial bank with a history of 22 years. Its business presence covers Hubei Province and Chongqing. It stands out for its distinctive and featured services, such as Fin-tech, neighborhood finance, and internet finance. The construction of the archives center aims to satisfy the bank’s needs for archives storage in the next 3 to 5 decades. It enhances the productivity and accuracy of work by putting place an entire process of archives collection, archiving, storage, retrieval, destruction with a systematic management approach.

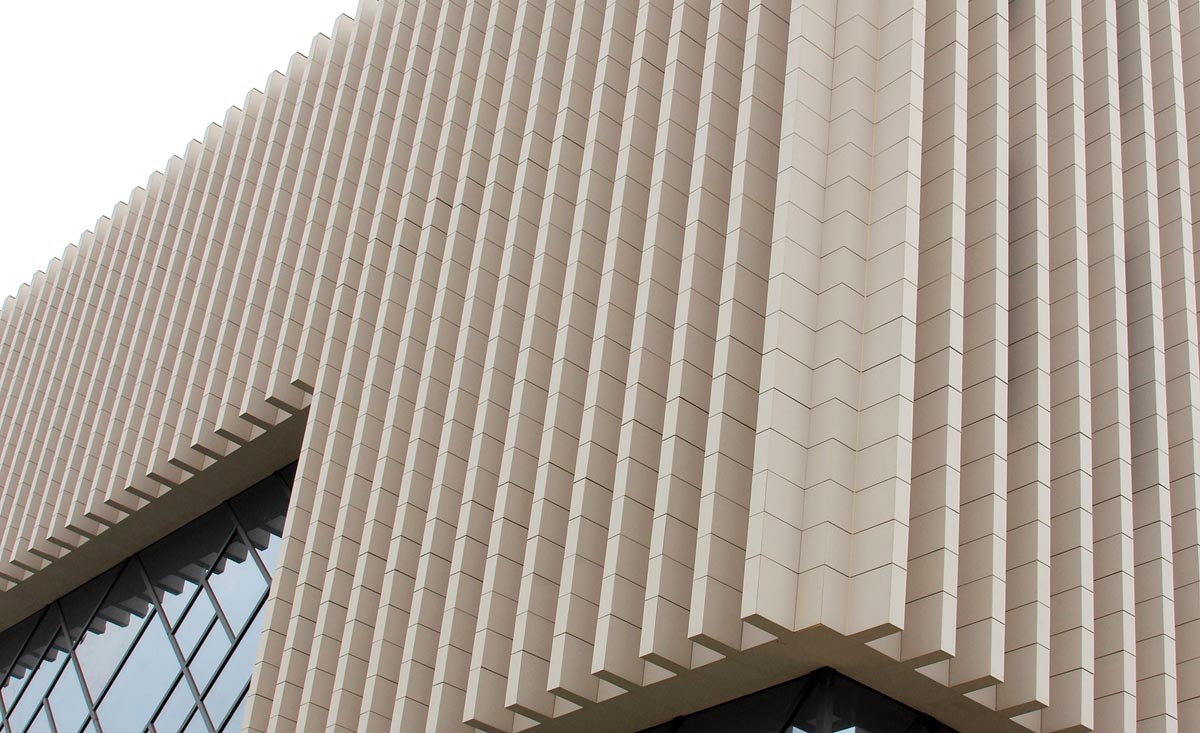

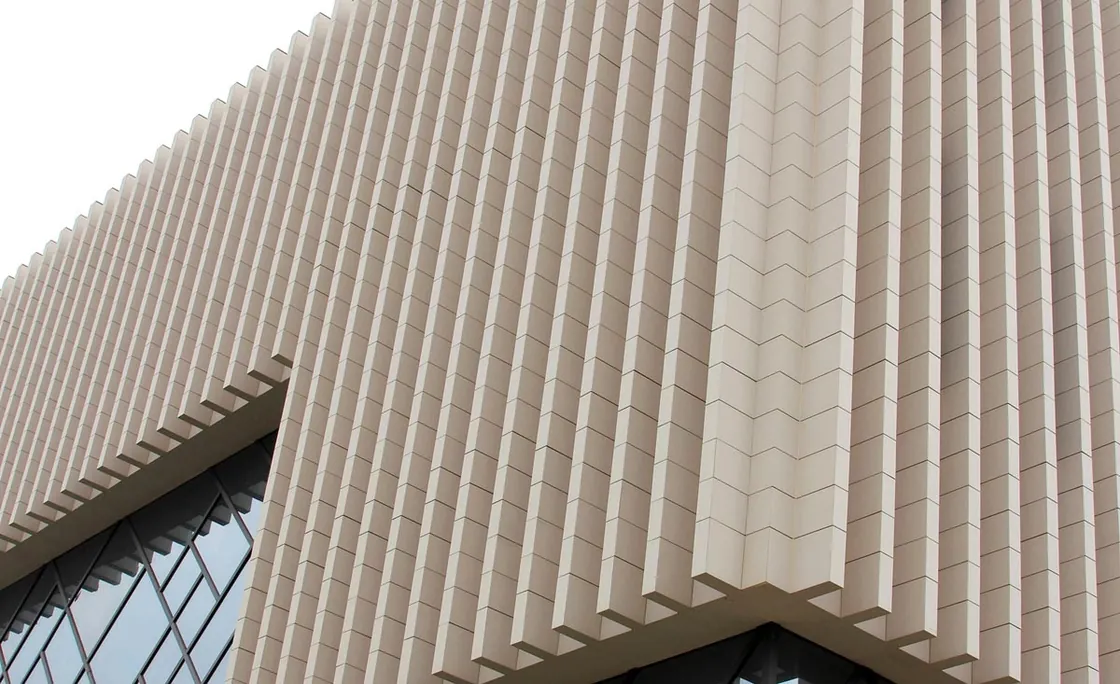

vertical terracotta architectural line.jpg

The archives center is designed and constructed in accordance with the first-class standards of domestic commercial banks, and introduces the architectural concept of sponge city. It features forward-looking characteristics, namely, systematic layout, proper zoning with different functions, energy-saving operation, and artistic appearance. The archive center covers a construction area of approximately 30,419.09 square meters and is 4 stories high. It consists of four warehouses and an ancillary building. Each archive area is independently built, self-contained, and framed. The center will be put into use December 2019.

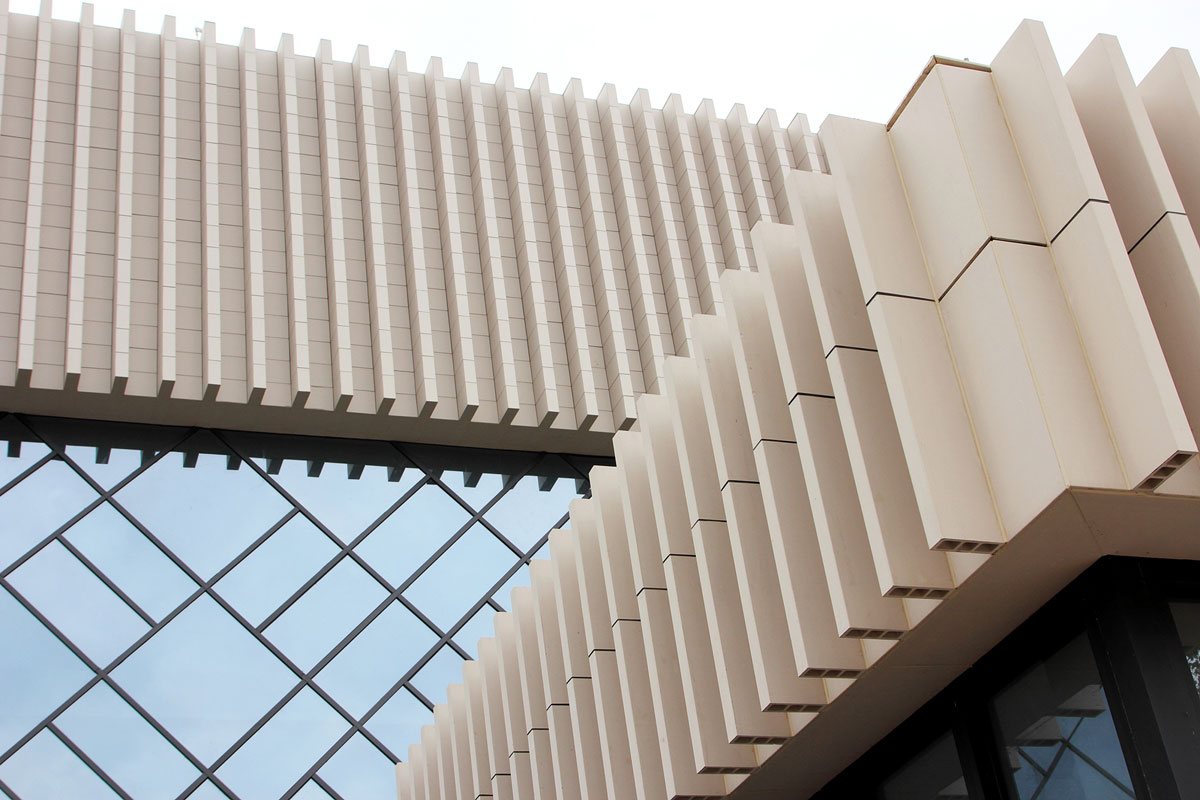

facade tiles and baguettes in natural shade.jpg

The shape of the archive center resembles a square box. The main façade is decorated with creamy white terracotta facade rainscreen, and the overall style is simple yet grand. The facade is geometrically divided into two parts, and the lower facade is natural terracotta facade tile. The upper part of the facade was designed with some vertically corrugated textures, mimicking neatly stacked archive files. It echoes the design purpose of the building. The terracotta panels of the upper facade was cut into fine elongated strips in advance at the LOPO China's plant. In addition, a 45-degree miter cutting was applied at the edges of the tiles so as to form vertically parallel lines.

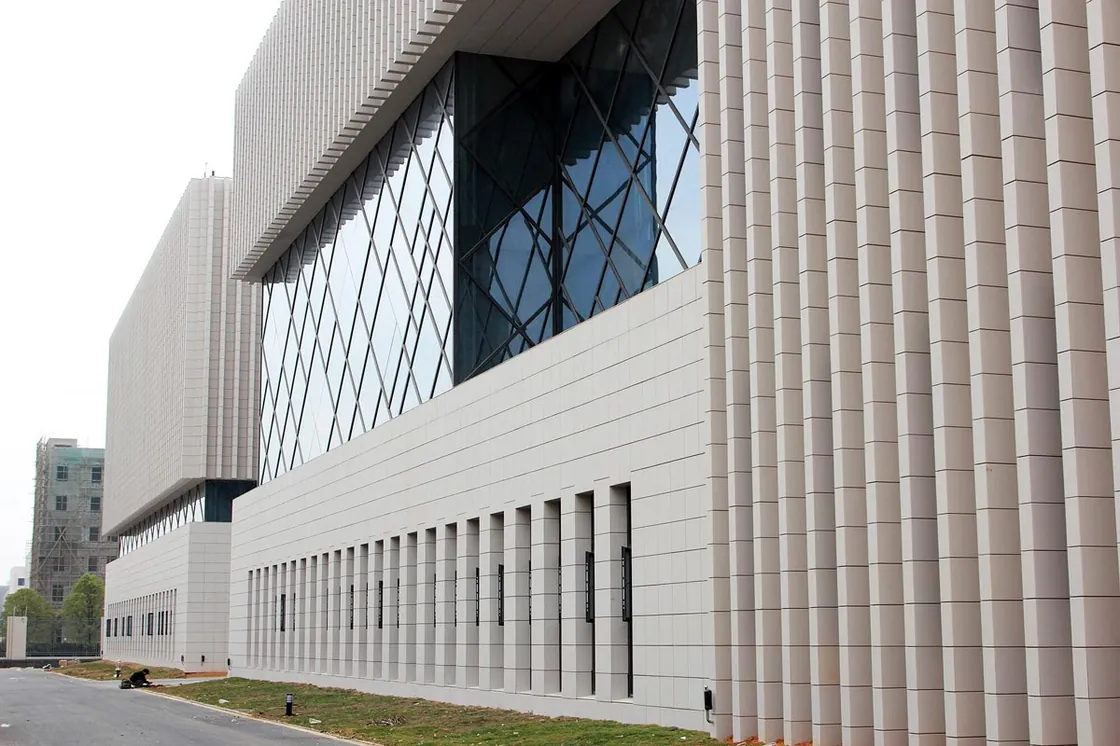

vertical fixed terracotta baguettes.jpg

At the gates of the front and back door of the archive center, the designer also used a mixture of terracotta baguettes and terracotta tiles with the same color for vertical installation, forming a good harmony with the overall facade of the archive center.

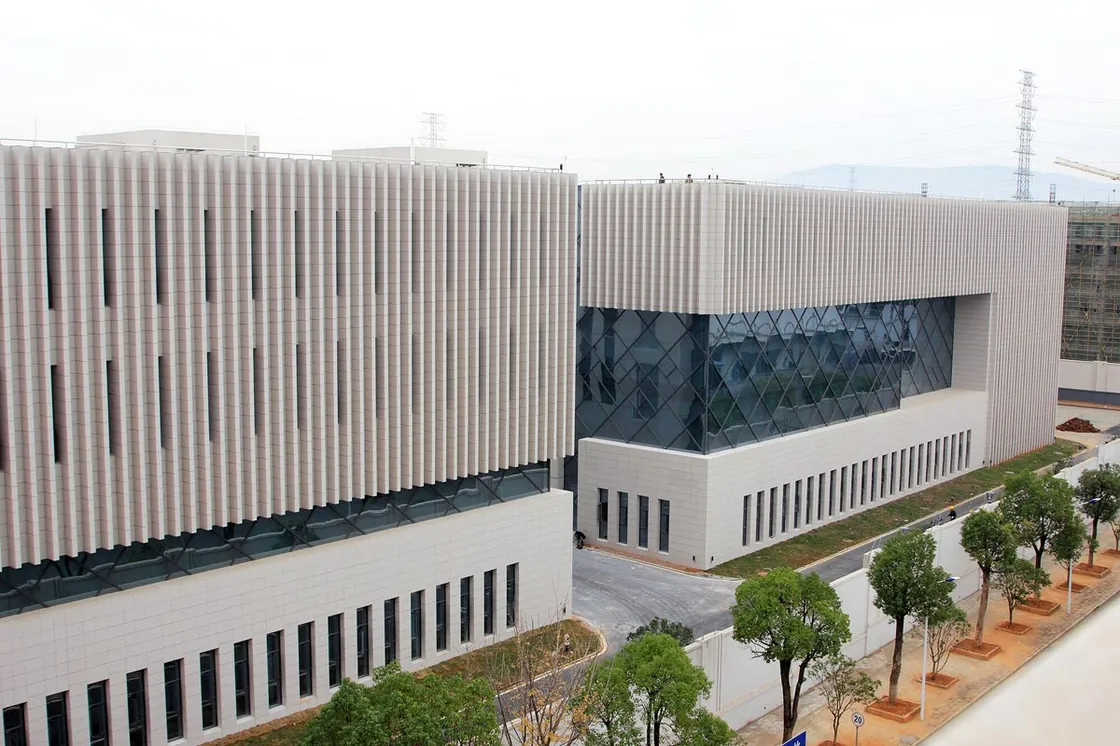

natural terracotta textured Bank Archives Center.jpg

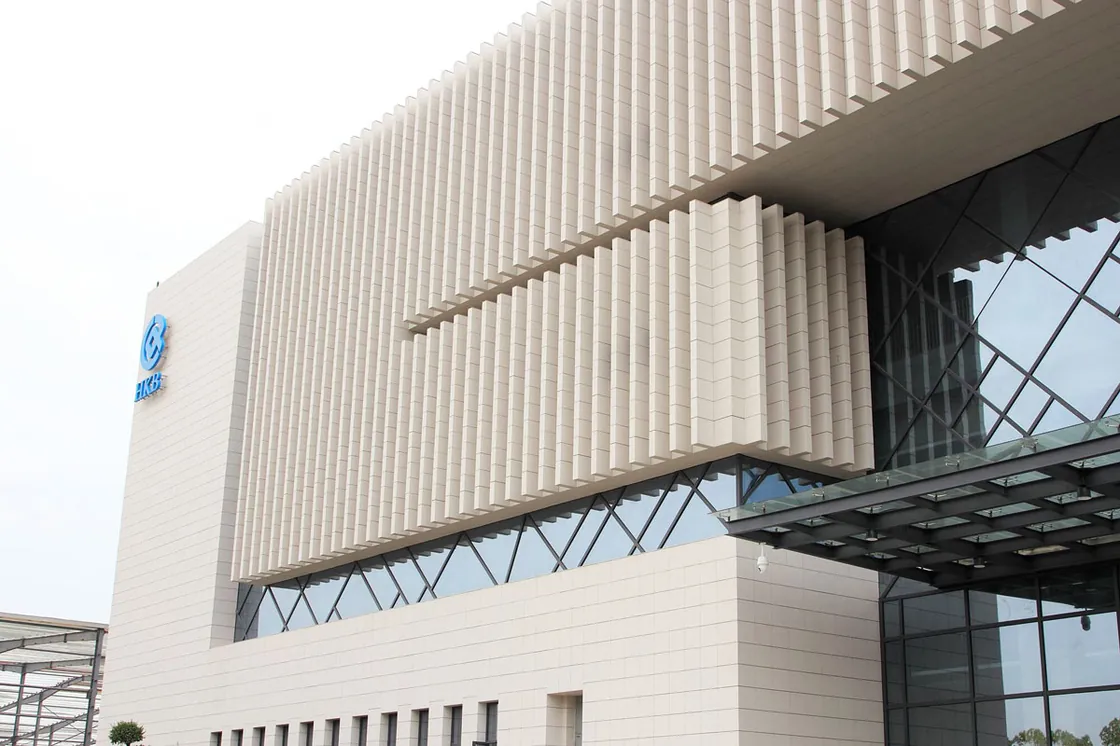

creamy white terracotta colors.jpg
