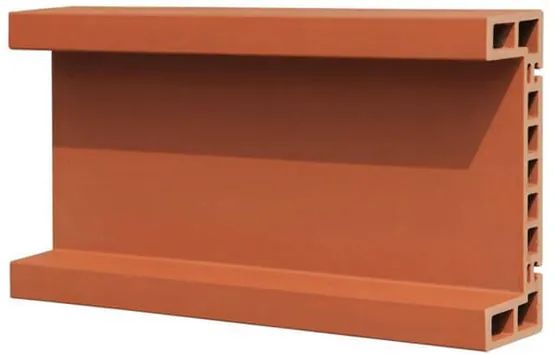

Terracotta Panel FT30100768

Terracotta Panel FT30100768

Item No.: FT30100768

Material: Natural Clay

Size: Customized

Usage: wall cladding/curtain wall/exterior wall panel

Terracotta Panel FT30100768 introduction

Product Specification
Item NO.FT30100768CertificationCE,ASTM,GB
SizeCustomizedMOQ1500 SQM
ColorBrownLead Time35 days
Surface FinishNatural FlatPackingWooden Crate
MaterialNatural ClayPortXiamen Port
Weight35 KGS/SQMPayment TermTT/LC

This LOPO Terracotta Facade Panel with louver combined is a customized product which architects wants to achieve a unique visual effect of stereo perception. As textured finishes of wall cladding have being of more and more individually design characteristics, LOPO China are committed to exploite new textures to meet individual project requirement. We’ll do our best to work with architects for exclusive products expressing a unique feature of the building.

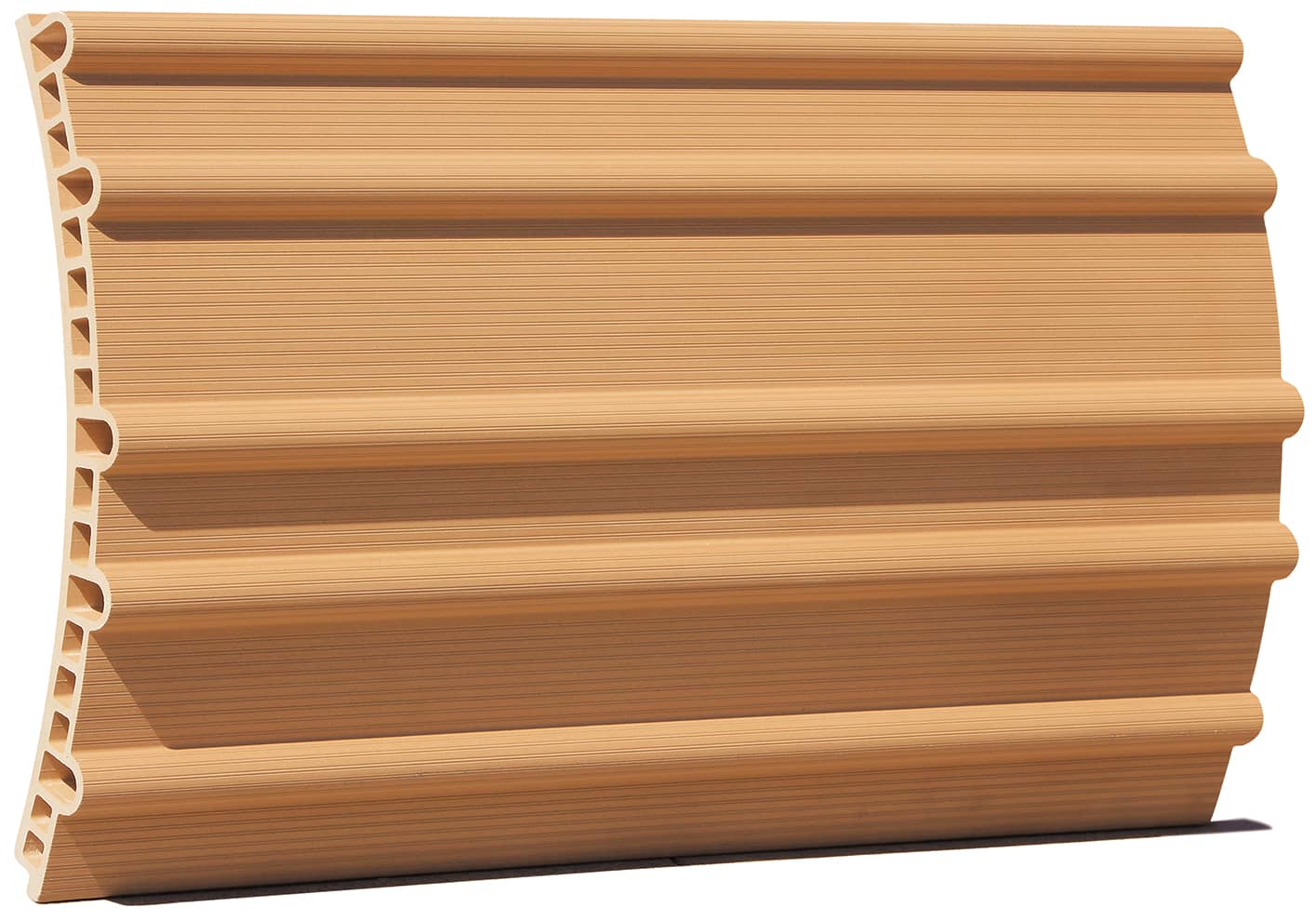

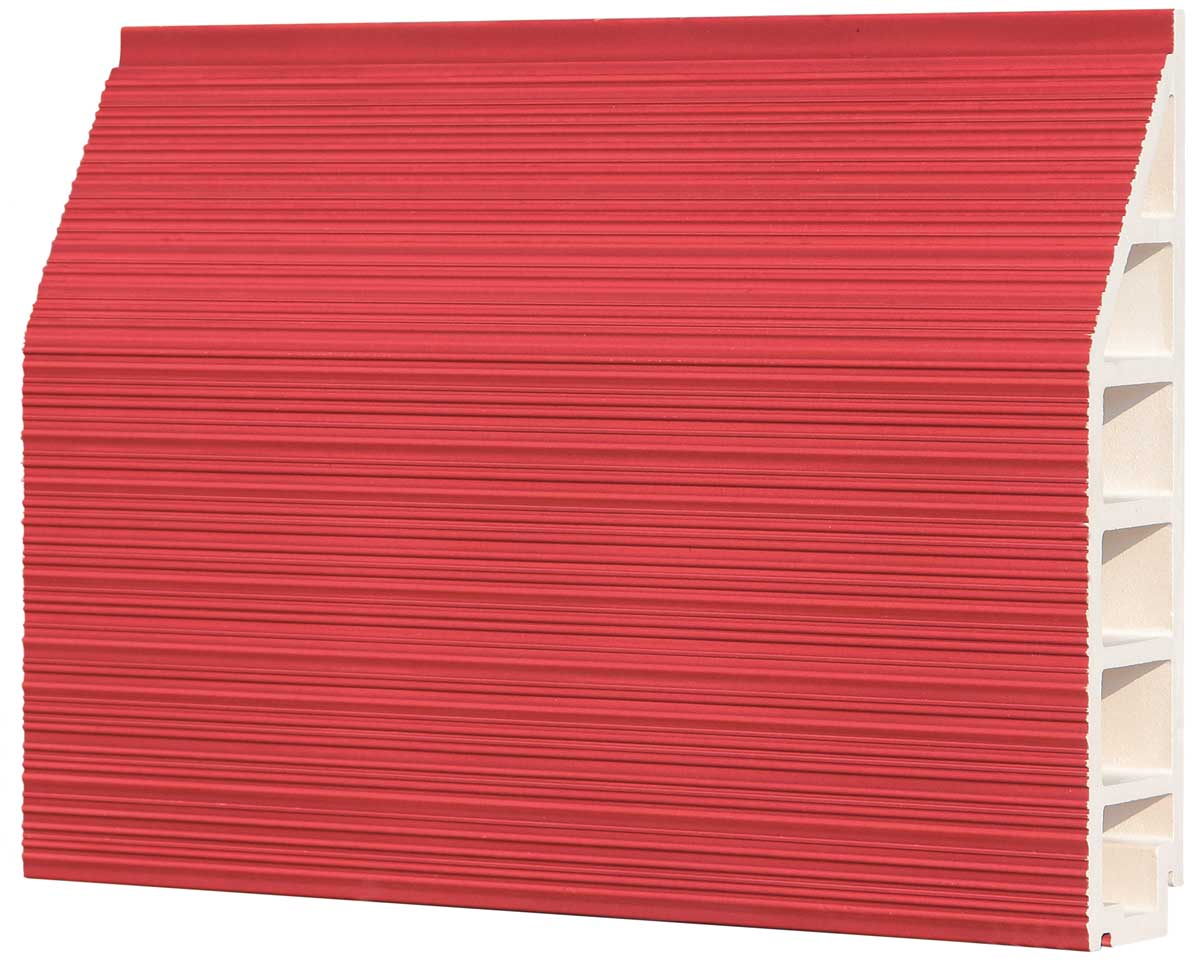

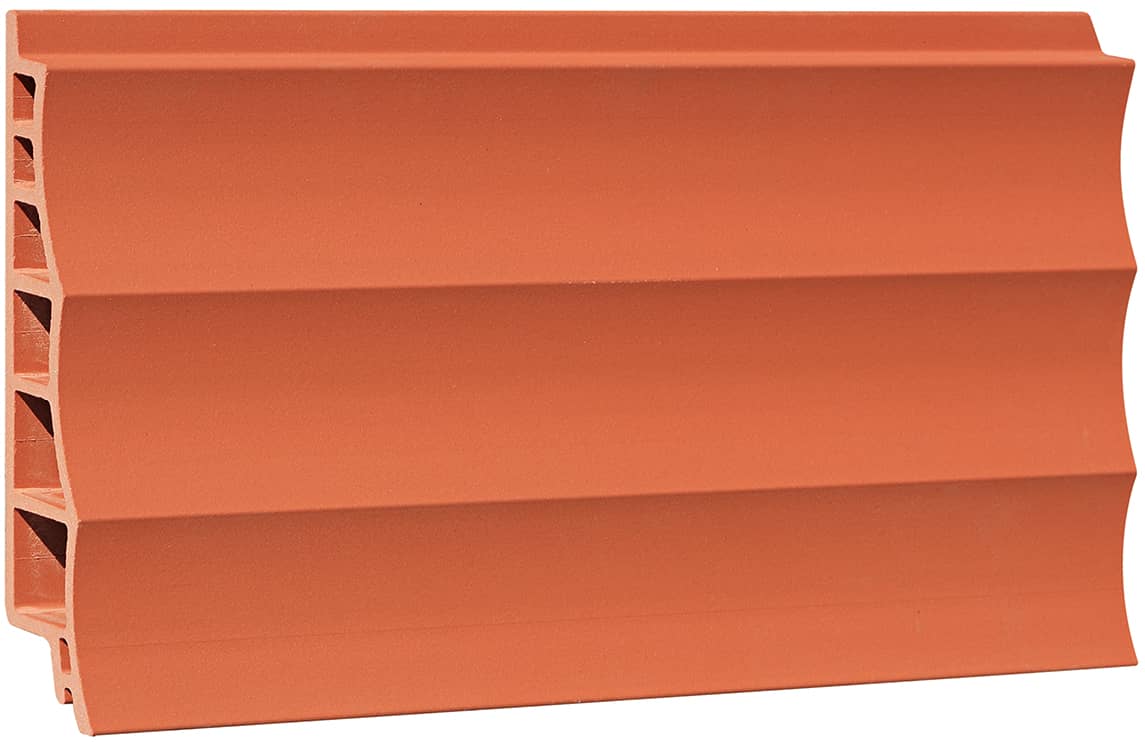

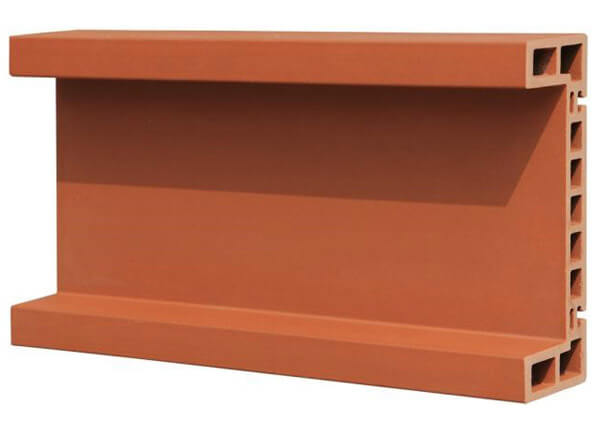

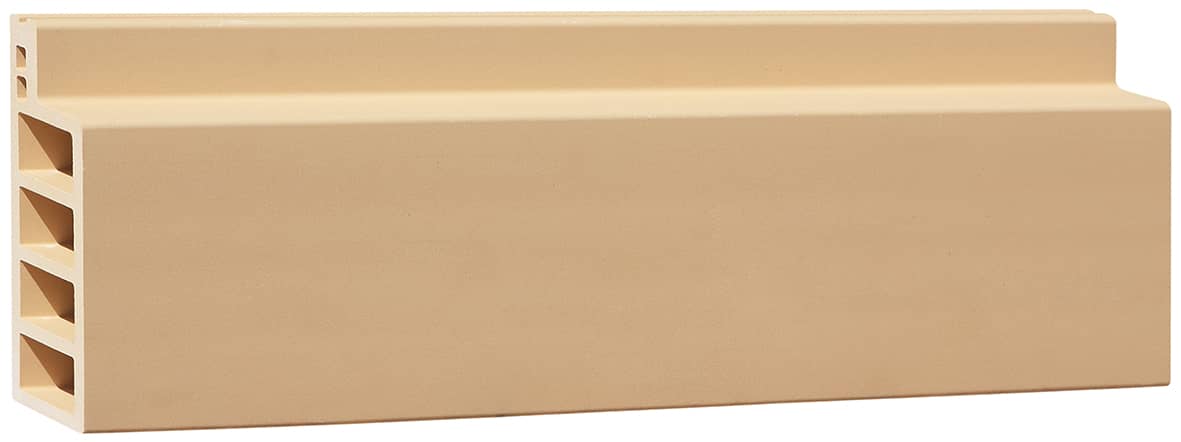

More LOPO Terracotta Panel with special shape:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm


Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions/Surface Quality


Length±1%/max.±1mm±2%ISO10545-2
Width±1%/max.±1.5mm±2%
Thickness±10%/max.±1.0mm±10%
Straightness of Sides±0.5%/max.(L:±2mm;W:±0.5mm)±1%
Rectangularity±0.5%/max.±1mm±1%
Surface Flatness

Centre Curvature ±1%±1%
Edge Curvature ±1%±1%
Warpage ±1%±1.5%
Surface QualityFulfilledA minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties


Water Absorption3-7.5%6-10%ISO10545-3
Breaking StrengthAverage>2700 N≥750 NISO10545-4
Modulus of RuptureAverage>15 MPaAverage≥9 MPaISO10545-4
Abraision Resistance<460 mm³Max. 1062 mm³ISO10545-6
Resistance to Thermal ShockFulfilledPass according to EN ISO 10545-1ISO10545-9
Freeze-thaw ResistanceFulfilledPass according to EN ISO 10545-1ISO10545-12
Moisture Expansion<0.02%Declared valueISO10545-10
Reaction to FireClass A1Class A1 or A1FL
Chemical Properties


Chemical Resistance


Low Concentrations of Acids and Alkalis ULADeclared valueISO10545-13


LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
