LOPO China Terracotta Facade Panel Manufacturer

ProductsTerracotta PanelLinear Finish
Terracotta Rainscreen FX3018994

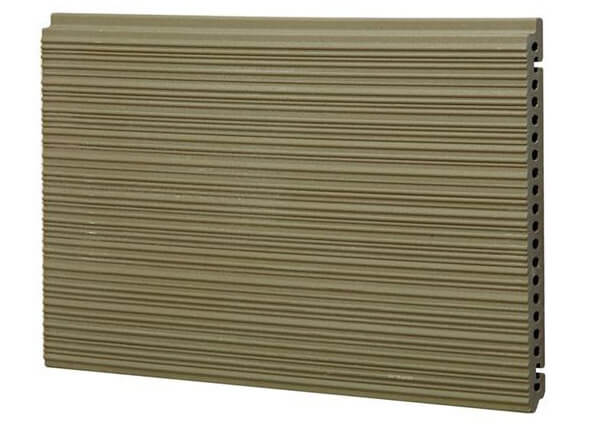

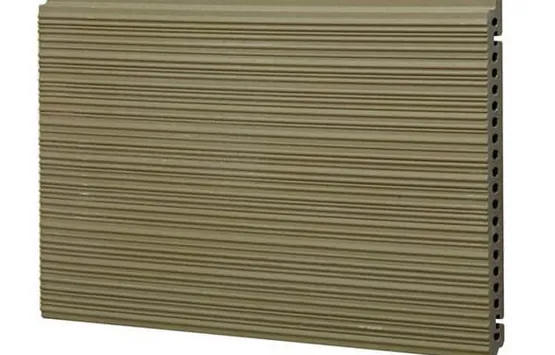

Terracotta Rainscreen FX3018994

Item No.: FX3018994

Material: Natural Clay, Eco Green Materials,

Size: 300*600*18mm

Usage: Wall Facade Cladding Decoration

Terracotta Rainscreen FX3018994 introduction

Product Specification
Item NO.FX3018994CertificationCE,ASTM,GB
Size300*600*18mmMOQ1500 SQM
ColorGreenLead Time35 days
Surface FinishLinearPackingWooden Crate
MaterialNatural ClayPortXiamen Port
Weight31 KGS/SQMPayment TermTT/LC

LOPO Terracotta Panel with linear surface is representing a simple and elegant visual effect for wall cladding, which is quite suitable for public buildings. LOPO are capable for creating different combed patterns for architects and designers.

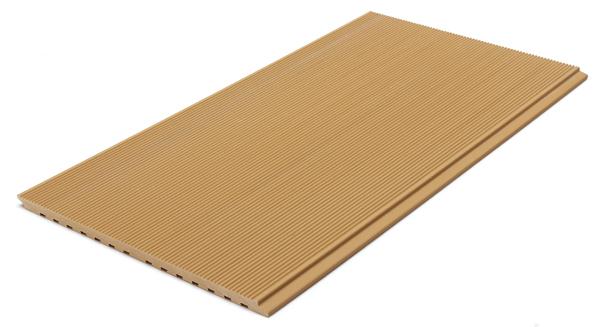

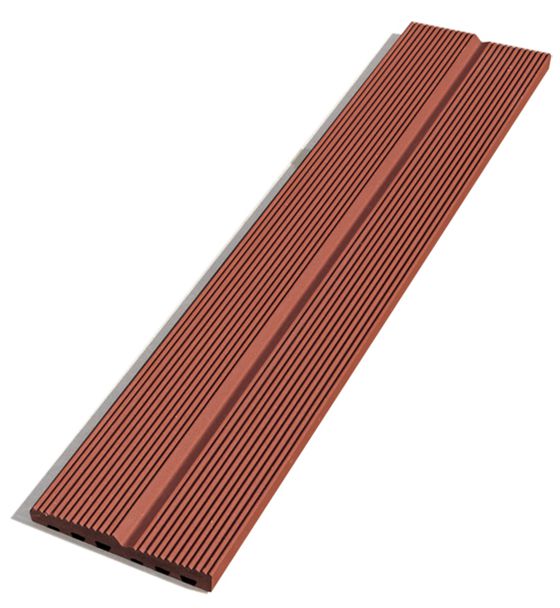

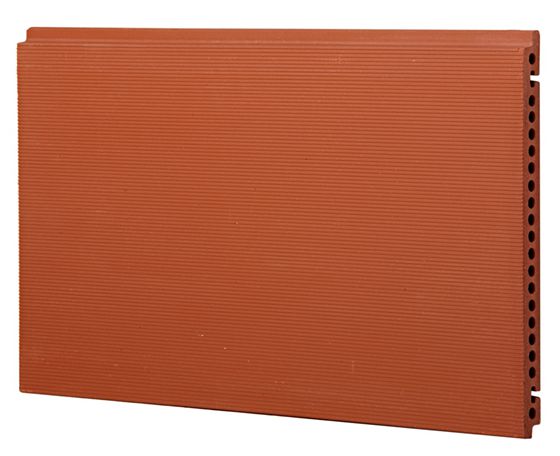

More LOPO Terracotta Panel with linear finish:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm


Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions/Surface Quality


Length±1%/max.±1mm±2%ISO10545-2
Width±1%/max.±1.5mm±2%
Thickness±10%/max.±1.0mm±10%
Straightness of Sides±0.5%/max.(L:±2mm;W:±0.5mm)±1%
Rectangularity±0.5%/max.±1mm±1%
Surface Flatness

Centre Curvature ±1%±1%
Edge Curvature ±1%±1%
Warpage ±1%±1.5%
Surface QualityFulfilledA minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties


Water Absorption3-7.5%6-10%ISO10545-3
Breaking StrengthAverage>2700 N≥750 NISO10545-4
Modulus of RuptureAverage>15 MPaAverage≥9 MPaISO10545-4
Abraision Resistance<460 mm³Max. 1062 mm³ISO10545-6
Resistance to Thermal ShockFulfilledPass according to EN ISO 10545-1ISO10545-9
Freeze-thaw ResistanceFulfilledPass according to EN ISO 10545-1ISO10545-12
Moisture Expansion<0.02%Declared valueISO10545-10
Reaction to FireClass A1Class A1 or A1FL
Chemical Properties


Chemical Resistance


Low Concentrations of Acids and Alkalis ULADeclared valueISO10545-13


LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
