Product Specification | |||
Item NO. | FH301868 | Certification | CE,ASTM,GB |
Size | 300*600*18mm | MOQ | 1500 SQM |
Color | Red | Lead Time | 35 days |
Surface Finish | Sanding | Packing | Wooden Crate |
Material | Natural Clay | Port | Xiamen Port |
Weight | 31 KGS/SQM | Payment Term | TT/LC |

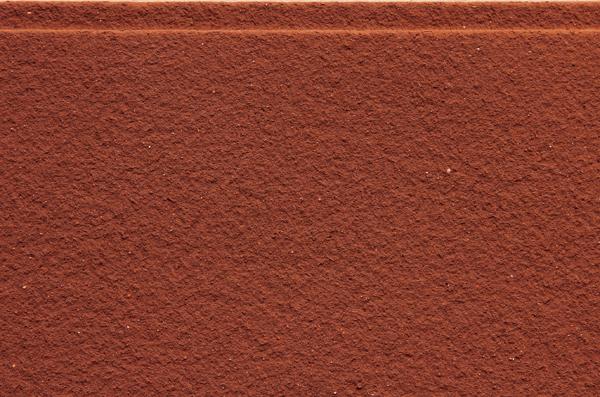

LOPO Terracotta Facade Panel with sanding finish makes the texture of building more sophisticated. In order to present a “natural stone” appearance, flat Terracotta Panel has been specially processed before firing. Some of the sanding surface can be sprayed a light glaze to make them more like a real stone (e.g. FH401881).
More LOPO Terracotta Panel with sanding finish:
Terracotta Panel |
||
|
Standard Product |
Customized Design |
Color |
Red/Yellow/White/Brown/Grey |
Available on Request |
Surface |
Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated |
Available on Request |
Length |
600mm/900mm/1000mm/1200mm |
Max.1800mm |
Width |
200mm/300mm/450mm/500mm |
Max.600mm |
Thickness |
10mm/12mm/16mm/18mm/22mm/24mm/30mm |
Max.50mm
|
Technical Specification of LOPO Facade Panels:
LOPO Technical Data Sheet |
|||
Item: LOPO Terracotta Facade Panel (Thickness:18mm) | |||
Characteristic | Specification | EN14411 Standard | Test Method |
Dimensions/Surface Quality | |||
Length | ±1%/max.±1mm | ±2% | ISO10545-2 |
Width | ±1%/max.±1.5mm | ±2% | |
Thickness | ±10%/max.±1.0mm | ±10% | |
Straightness of Sides | ±0.5%/max.(L:±2mm;W:±0.5mm) | ±1% | |
Rectangularity | ±0.5%/max.±1mm | ±1% | |
Surface Flatness | |||
Centre Curvature | ±1% | ±1% | |
Edge Curvature | ±1% | ±1% | |
Warpage | ±1% | ±1.5% | |
Surface Quality | Fulfilled | A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles. | |
Physical Properties | |||
Water Absorption | 3-7.5% | 6-10% | ISO10545-3 |
Breaking Strength | Average>2700 N | ≥750 N | ISO10545-4 |
Modulus of Rupture | Average>15 MPa | Average≥9 MPa | ISO10545-4 |
Abraision Resistance | <460 mm³ | Max. 1062 mm³ | ISO10545-6 |
Resistance to Thermal Shock | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-9 |
Freeze-thaw Resistance | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-12 |
Moisture Expansion | <0.02% | Declared value | ISO10545-10 |
Reaction to Fire | Class A1 | Class A1 or A1FL | |
Chemical Properties | |||
Chemical Resistance | |||
Low Concentrations of Acids and Alkalis | ULA | Declared value | ISO10545-13 |
LOPO Terracotta Facade Panel Features & Benefits:
• Environmentally-friendly and Sustainable;
• Natural color (fadeless);
• Stable and Durable (Frost resistance up to 150 cycles);
• Non-flammable;
• With Sound Insulation Properties and Thermal Insulation Properties;
• Low Maintenance;
