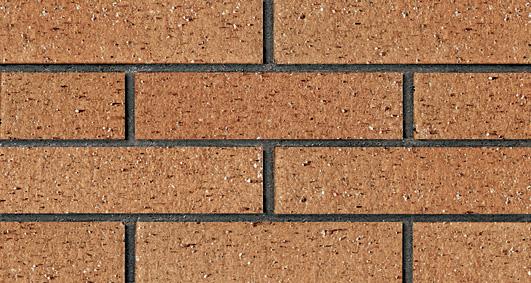

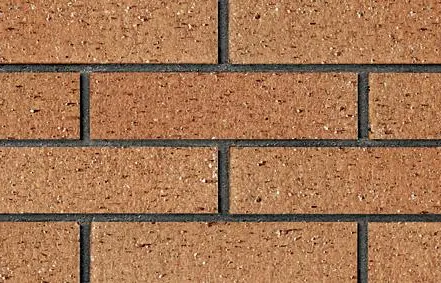

Clay Tile|Wall Brick WR576

Clay Tile|Wall Brick WR576

Item No.: WR576

Material: Natural Clay, Eco Green Material

Size: 240x60x11mm, 230x52x11mm, 200x52x11mm

Usage: Wall Cladding Decoration,Exterior Decoration

Clay Tile|Wall Brick WR576 introduction

Product Specification
Item NO: WR576
Size(L/W/T): ①240*60*11mm ②230*52*11mm ③200*52*11mm
Material: Natural Clay
Corner Tile: Available
Certificate: ISO/GB


Technical Specification of LOPO Clay Tile:

CHARACTERISTIC LOPO Specification Reference Standard (GB/T4100-2006)
Dimensions and surface quality
Length(%) ±1/max.±2mm±1.5/max.±2mm
Width(%) ±1/max.±2mm±1.5/max.±2mm
Thickness(%) ±10±10
Surface quality Fulfill the reference standardNo obvious flaw is visually inspected from a distance of 1 metre while the tile is hanging vertically.
Physical properties
Water absorption(%) Average:E≤63<Average E≤6;Individual≤6.5
Modulus of rupture(MPa) Average:R≥23Average R≥13; Individual≥11
Breaking strength(N) Average:S≥1000Average S≥800
Frost resistance Fulfill the reference standardNo visible damages after 100 changes of freezing and thawing.
Resistance to thermal shock Fulfill the reference standardFree from defects after 10 cycles.

Features of LOPO Clay Tile:

◎ Natural and Fadeless Texture

◎ Green and Sustainable Material

◎ Low Maintenance

◎ Great Insulation performance

◎ Fire Resistance
