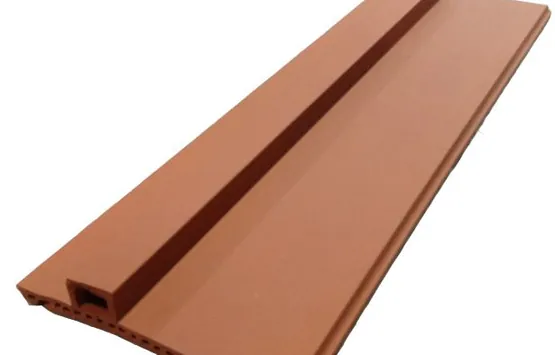

F63 Terracotta Panel Special Shape

F63 Terracotta Panel Special Shape

Item No.: F63

Material: Natural Clay

Size: 16/50x300x1200

Usage: wall cladding/curtain wall/exterior wall panel

F63 Terracotta Panel Special Shape introduction

Product Specification
Item NO. F63 Certification CE,ASTM,GB
Size 16/50*300*1200mm MOQ 1500 SQM
Color Red Lead Time 35 days
Surface Finish Natural Flat Packing Wooden Crate
Material Natural Clay Port Xiamen Port
Weight 31 KGS/SQM Payment Term TT/LC

This LOPO Terracotta Facade Panel with louver combined is a customized product which architects wants to achieve a unique visual effect of stereo perception. As textured finishes of wall cladding have being of more and more individually design characteristics, LOPO China are committed to exploite new textures to meet individual project requirement. We’ll do our best to work with architects for exclusive products expressing a unique feature of the building.

More LOPO Terracotta Panel with special shape:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm


Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions/Surface Quality
Length ±1%/max.±1mm ±2% ISO10545-2
Width ±1%/max.±1.5mm ±2%
Thickness ±10%/max.±1.0mm ±10%
Straightness of Sides ±0.5%/max.(L:±2mm;W:±0.5mm) ±1%
Rectangularity ±0.5%/max.±1mm ±1%
Surface Flatness
Centre Curvature ±1% ±1%
Edge Curvature ±1% ±1%
Warpage ±1% ±1.5%
Surface Quality Fulfilled A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties
Water Absorption 3-7.5% 6-10% ISO10545-3
Breaking Strength Average>2700 N ≥750 N ISO10545-4
Modulus of Rupture Average>15 MPa Average≥9 MPa ISO10545-4
Abraision Resistance <460 mm³ Max. 1062 mm³ ISO10545-6
Resistance to Thermal Shock Fulfilled Pass according to EN ISO 10545-1 ISO10545-9
Freeze-thaw Resistance Fulfilled Pass according to EN ISO 10545-1 ISO10545-12
Moisture Expansion <0.02% Declared value ISO10545-10
Reaction to Fire Class A1 Class A1 or A1FL
Chemical Properties
Chemical Resistance
Low Concentrations of Acids and Alkalis ULA Declared value ISO10545-13

LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
