ProductsTerracotta BaguettesTerracotta Louver

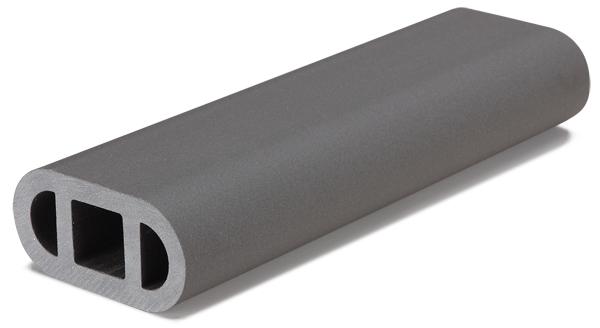

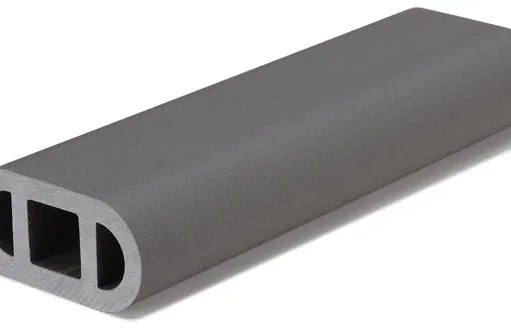

Terracotta Baguette

Item_No T5010086 ellipse

Material Natural Clay, Eco Green Materials,

Size 100*1800*50mm

Usage Wall Facade Cladding Decoration,

Terracotta Baguette introduction

Product Specification
Item NO. T5010086 ellipse Certification CE,ASTM,GB
Size 100*1800*50mm MOQ 1000 M
Color Grey Lead Time 35 Days
Surface Finish Natural Flat Packing Wooden Crate
Material Natural Clay Port Xiamen Port
Weight 6.2 KGS/M Payment Term TT/LC

LOPO terracotta louver/baguette has wide range of pipe forms with square, oblong, triangle, circular cross-sections. This series product is of great functions in decorations and sun protection which is mainly applying in window areas, parapets and balcony etc. The most commonly used size is 50*50 mm, but LOPO China is capable of providing customized terracotta louver products catering for the architectural design.

More LOPO Terracotta Louver / Baguette:

Terracotta Louver

Regular Product

Color

Surface

Length

Width

Thickness

Red/Yellow/White/Brown/Grey

Natural/Glazed

50mm

50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

100mm

40mm
50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

150mm
100mm

50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

180mm

40mm
50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

200mm

45mm

Customized Design

Sample/Design

Sample/Design

LOPO Technical Specification of Terracotta Baguette:

LOPO Technical Data Sheet
Item: LOPO Terracotta Square Baguette (Length:1000mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions and Surface Quality
Length ±0.5% ±2% ISO10545-2
Width ±0.5% ±2%
Thickness ±5% ±10%
Straightness of sides ±0.5% ±1%
Rectangularity ±1% ±1%
Surface Quality Fulfilled A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties
Water Absorption 3-7.5% 6-10% ISO10545-3
Breaking Strength Average>23000 N ≥750 N ISO10545-4
Abraision Resistance Max. 1062 mm³ ISO10545-6
Resistance to thermal shock Fulfilled Pass according to EN ISO 10545-1 ISO10545-9
Freeze-thaw Resistance Fulfilled Pass according to EN ISO 10545-1 ISO10545-12
Moisture Expansion Declared value ISO10545-10
Reaction to Fire Class A1 Class A1 or A1FL
Chemical Properties
Chemical Resistance
Low Concentrations of Acids and Alkalis ULA Declared value ISO10545-13

LOPO Terracotta Baguette Features & Benefits:

• Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
